Warp Hubs
Warp Hubs
- 22.2MM (7/8") POLE DIAMETER
- TANGENTAL 3-SPOKE PATTERN
- 8mm SPOKE DIAMETER
- ONE-PIECE DESIGN
- 6082-T6 ALUMINIUM
- 70 grams EACH
- INCLUDES ALLEN KEY & SPARE GRUB SCREWS

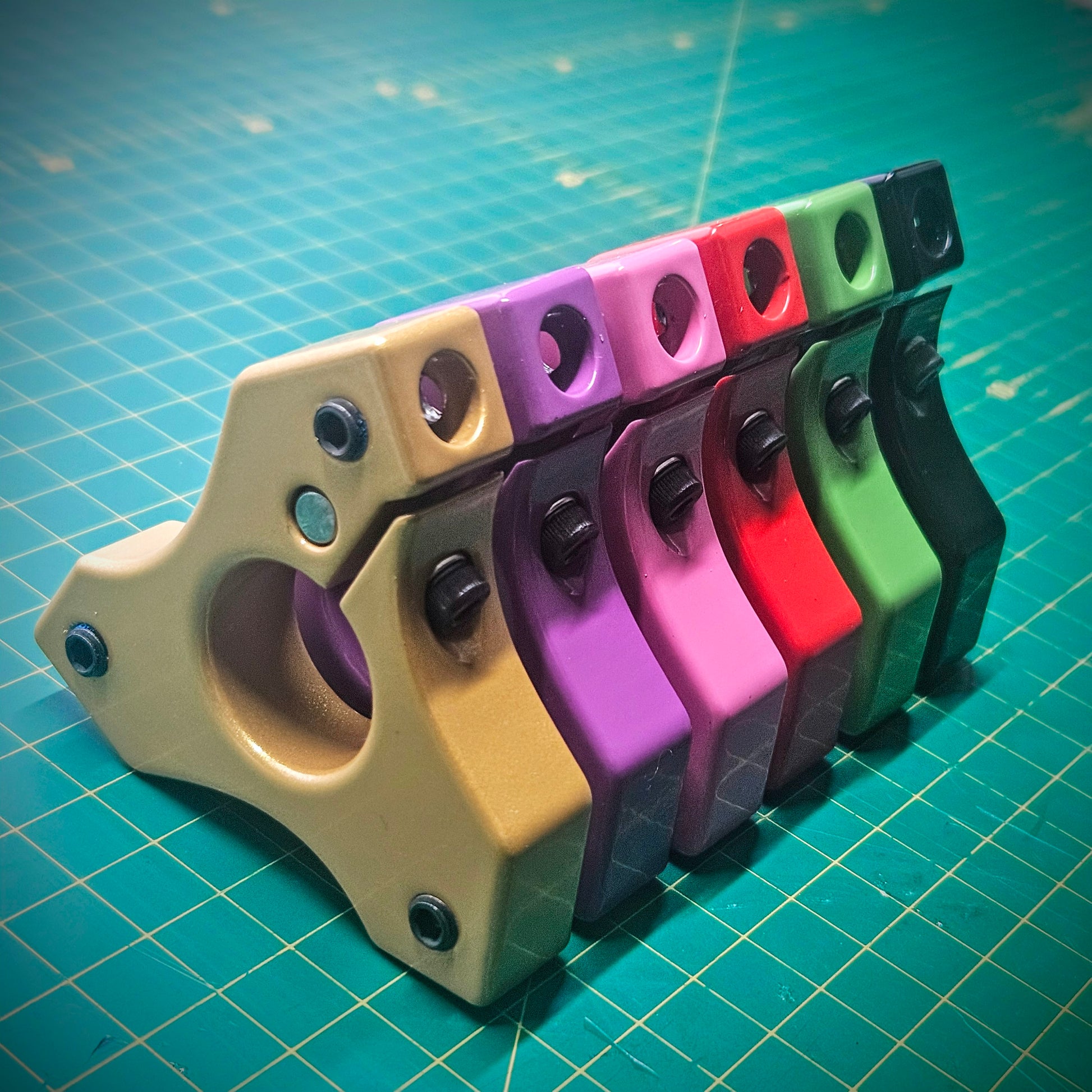

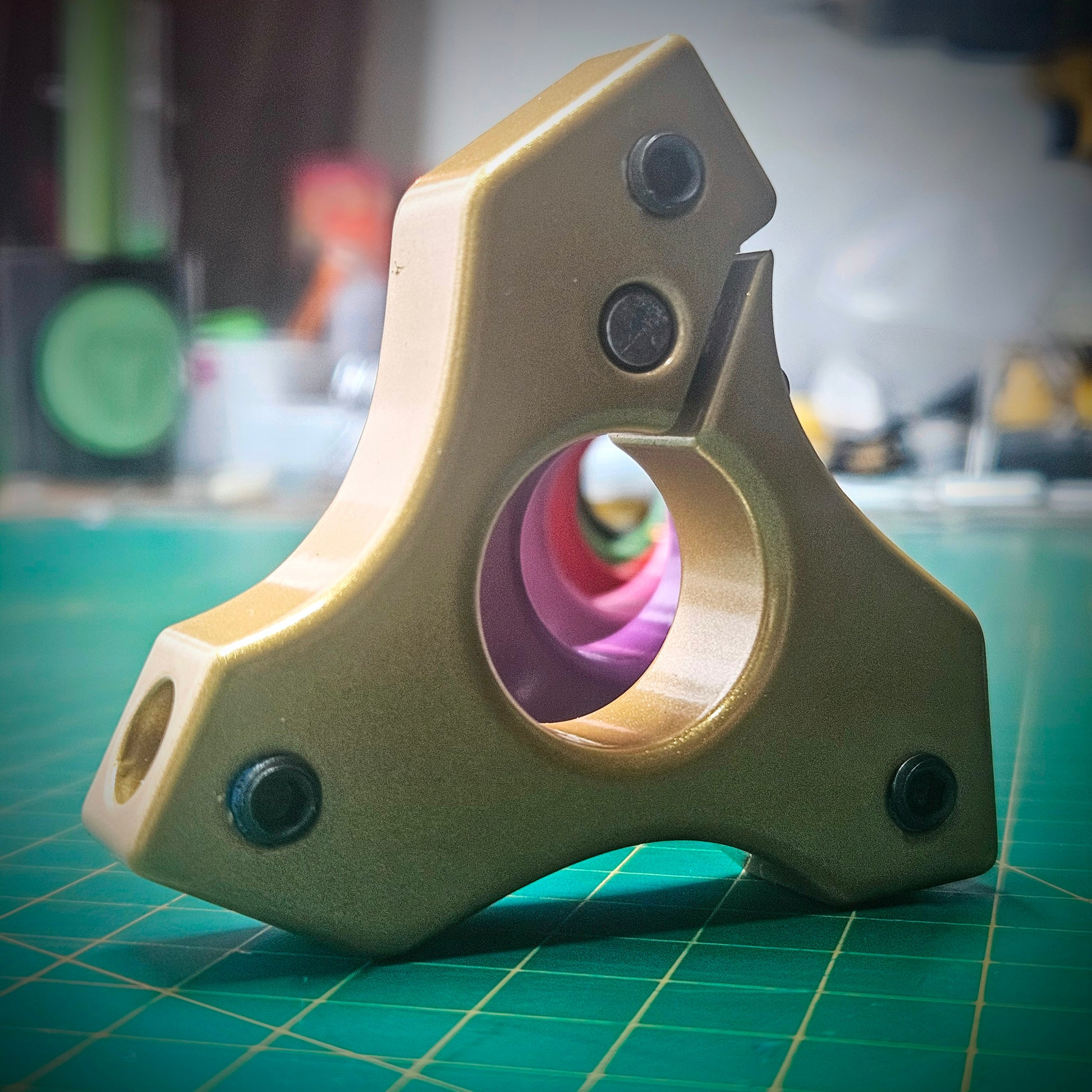

Our Warp Dragon staff hubs are hand-made in our metal workshop and are designed to be simple, elegant and strong.
Our simple one-piece design eliminates any fumbling around when setting up, dismantling or transferring the hub to other props, just plug and play.
Having spoke anchor threads on either side of the hub allows you to mix or match their orientation and still have the grub-screws on the outside of the prop for easy assembly and deconstruction.
This also grants the ability to externally bolt on different fire and daytime dragon heads (coming soon)
The minimalist design aesthetics put the strength where it is needed most and cuts out the unnecessary material, making the most of the structural-grade 6082-T6 aluminium.

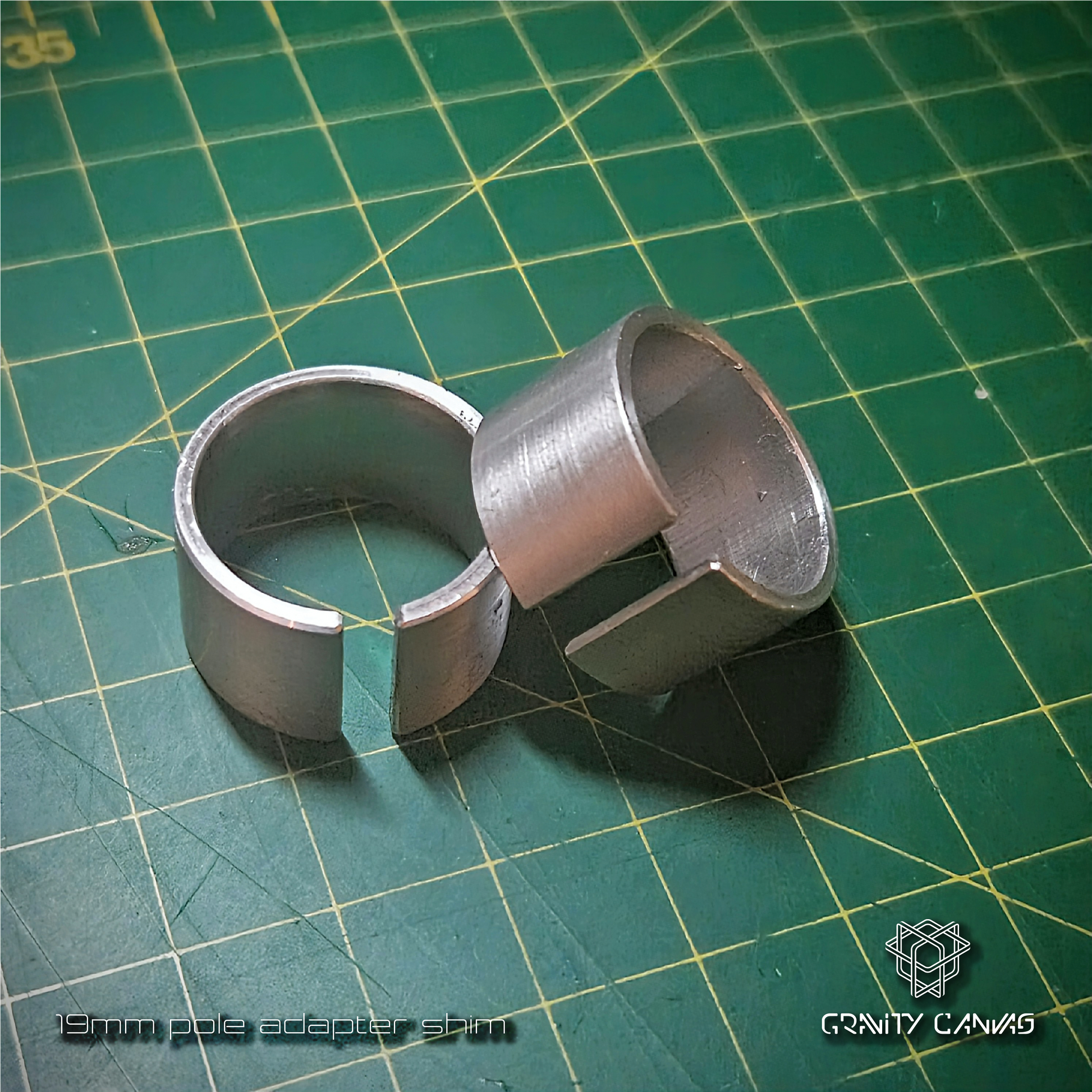

These hubs are designed to be used on industry standardised 22.2mm (7/8 Inch) poles and we can supply diameter reduction shims as an extra if you spin with 19mm (3/4 Inch) poles.

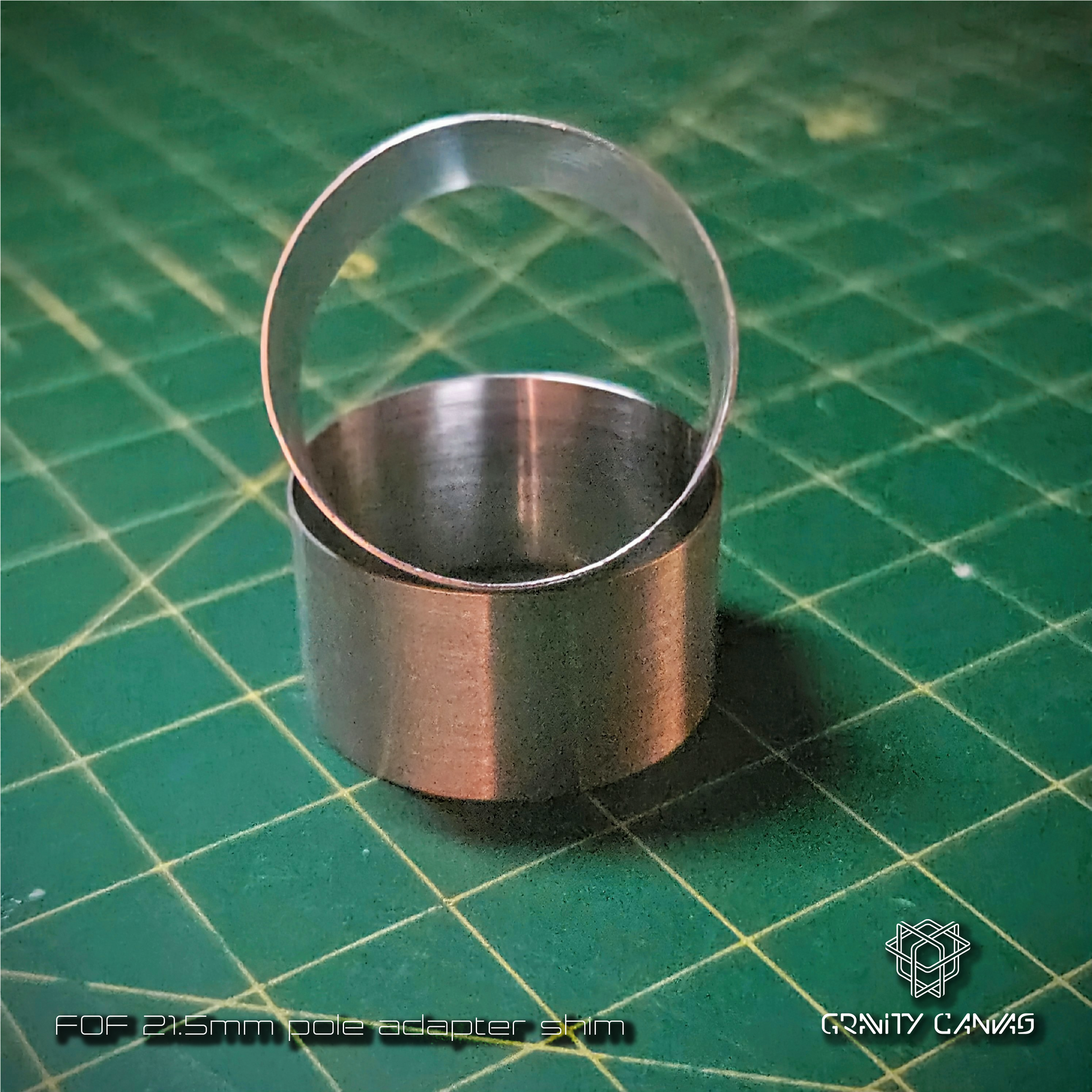

If you are using Flow On Fire Carbon poles, they are sometimes actually 21.5mm in diameter so you will need the specific shim for our hubs to fit correctly.
Please make sure to triple check the exact diameter of your pole prior to purchase!
If in doubt, purchase one of our high-quality carbon poles to avoid disappointment.
HUBS ARE SOLD INDIVIDUALLY
More Info
More Info
Due to the nature of our clamp style, end plugs are not essential with poles with a wall thickness of 1.5mm and thicker, as a relatively low bolt torque is needed to achieve a high and even clamping force around the whole circumference of the staff.
However those with Carbon Fibre poles should still be aware that cracking or crushing may still be a possibility if over tightened due to the significant variation in carbon fibre quality available on the market.
These hubs are designed to be used with 8mm diameter spokes.
Whilst it is not recommended, if you are using thinner spokes than this standard, longer Grub screws will be needed to ensure the full amount of thread engagement is being used.
(hubs are only provided with 5mm x M6 grubs)
